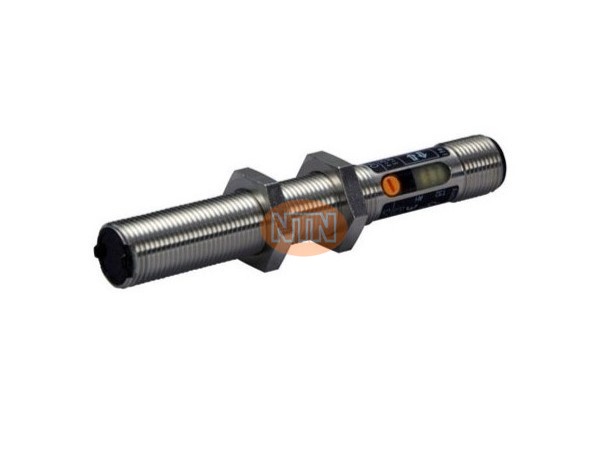

Cảm biến điện dung IFM KI0203 Capacitive sensor

Cảm biến điện dung IFM KI0203 Capacitive sensor

Cám ơn bạn đã quan tâm đến sản phẩm của NTN.
Yêu cầu báo giá xin click vào đây.

Mr. Nam:

0982494745

Model: KI0203

Maker: IFM

Description: Cảm biến điện dung

Cảm biến điện dung IFM KI0203 Capacitive sensor

Easy setting of the sensing range via potentiometer
With combined AC/DC output stage
Two-wire technology
High noise immunity
Clearly visible indication of the switching status

Product characteristics
Output function	normally closed
Sensing range [mm]	3...15
Housing	Threaded type
Dimensions [mm]	M30 x 1.5 / L = 81
Electrical data
Operating voltage [V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	no
Outputs
Output function	normally closed
Max. voltage drop switching output DC [V]	8
Max. voltage drop switching output AC [V]	10
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]	200; (for UL application: 200 / 100 DC)
Permanent current rating of switching output DC [mA]	200; (for UL application: 200 AC / 100 DC)
Short-time current rating of switching output [mA]	1500; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	40
Short-circuit proof	no
Overload protection	no
Monitoring range
Sensing range [mm]	3...15
Sensing range adjustable	yes
Factory setting sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %
Operating distance [mm]	0...12.1
Accuracy / deviations
Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-15...15
Operating conditions
Ambient temperature [°C]	-25...70
Protection	IP 65
Increased immunity	yes; (Increased immunity to conducted radio frequency interference)
